C-BAND 5G INTERFERENCE SOLUTION
C-band is used for satellite services, radar, and microwave links; however, with the terrestrial wireless industry’s planned introduction of new mobile phone networks such as LTE, Wi-Max, and 5G, these C-band frequencies will now be shared amongst a wider range of services.

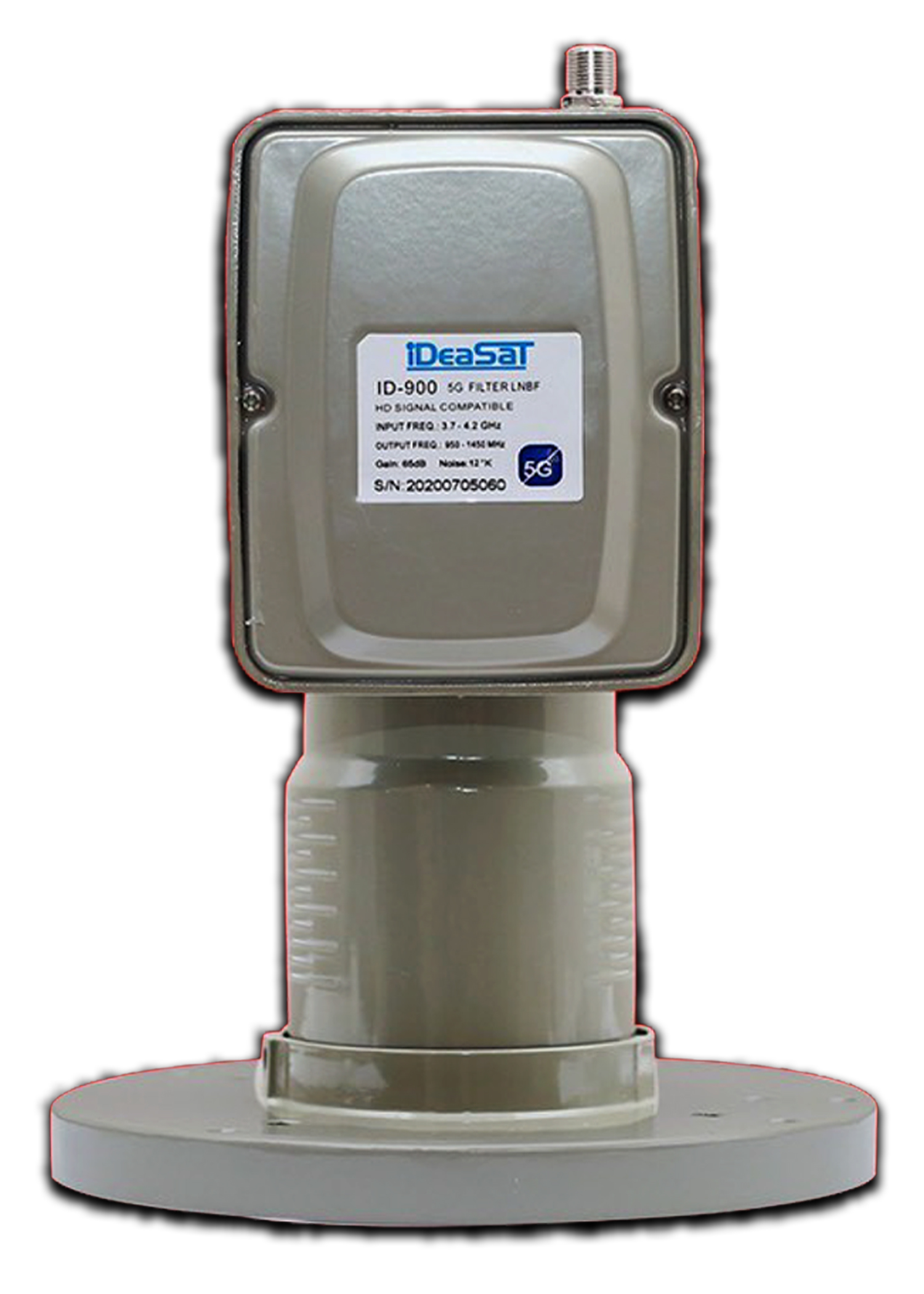

| Input Frequency : | 3.7-4.2GHz |
| Output Frequency : | 950~1450MHz |
| L.O Frequency : | 5.150GHz |
| Frequency Stability : | ± 2MHz(-40°C~+70°C) |
| Local Leakage Input : | -45dBm |
| Rejection at 3.5GHz : | ≥60dB |
| Conversion Gain : | 65dB(Typ) |
| L.O. PHASE NOISE : | -65dBc/Hz@1KHz |
| L.O. PHASE NOISE : | -95dBc/Hz@10KHz |
| L.O. PHASE NOISE : | -105dBc/Hz@10KHz |
| Gain Flatness : | ±4dB |
| Output VSWR : | 2:5:1 |
| Output Spurious : | -60dBm(Max) |
| Noise Temperature : | 12°K(Max) |
| Power Supply : | 13-24V/150mA(Max) |
| Waveguide : | WC-229 |
| Switching Voltage : | 11-14.5 V(V)/15.5-22V(H) |
| Image Rejection : | 45dB(Min) |
| Output Power : | +5dBm(at 1 dB compression) |
| Output Connector : | Type "F" Female |
| Input Connector : | Circular W G with Horn Ring |

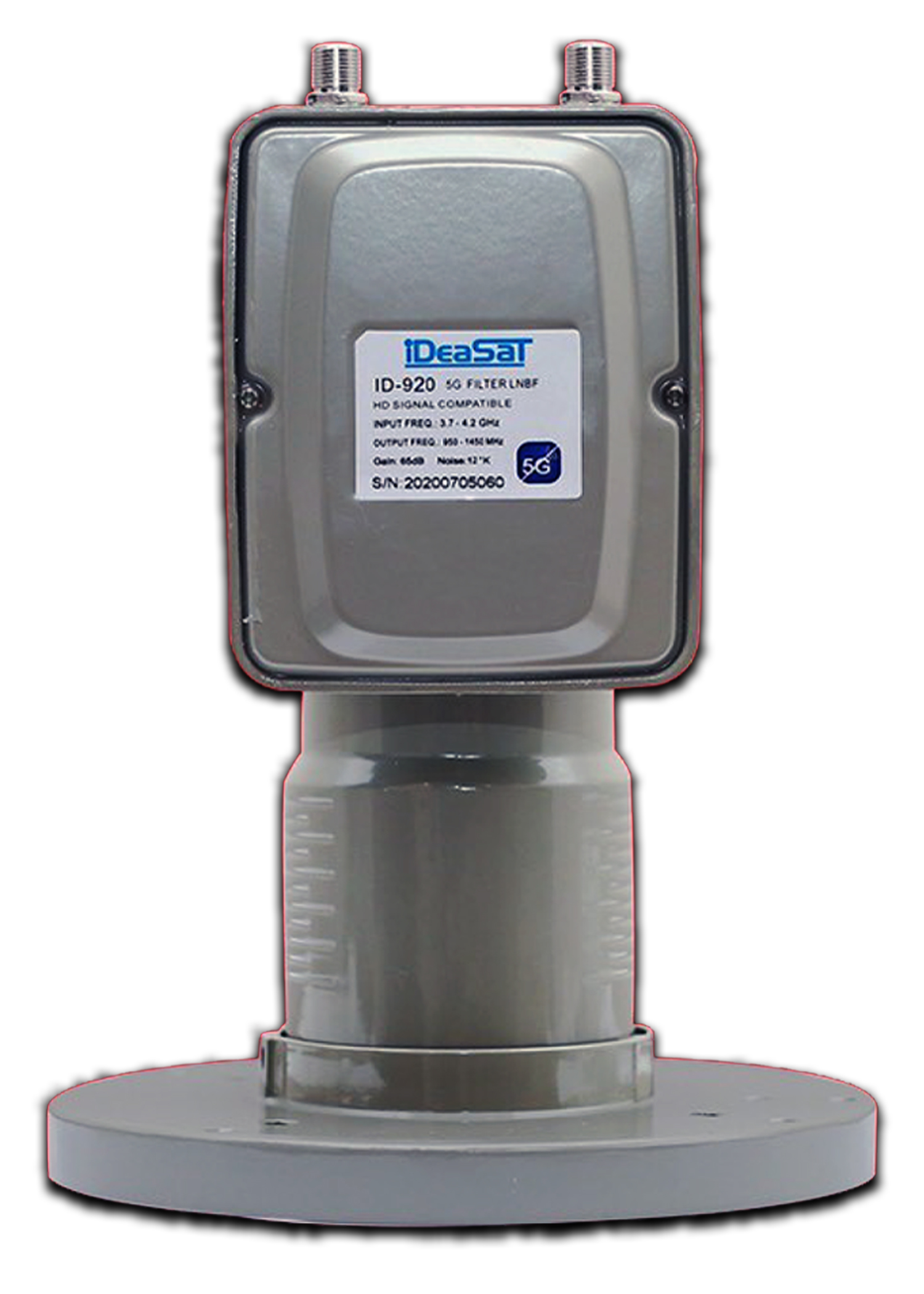

| Input Frequency : | 3.7-4.2GHz |
| Output Frequency : | 950~1450MHz |
| L.O Frequency : | 5.150GHz |
| Frequency Stability : | ± 2MHz(-40°C~+70°C) |
| Local Leakage Input : | -45dBm |
| Rejection at 3.5GHz : | ≥60dB |
| Conversion Gain : | 65dB(Typ) |
| L.O. PHASE NOISE : | -65dBc/Hz@1KHz |
| L.O. PHASE NOISE : | -95dBc/Hz@10KHz |
| L.O. PHASE NOISE : | -105dBc/Hz@10KHz |
| Gain Flatness : | ±4dB |
| Output VSWR : | 2:5:1 |
| Output Spurious : | -60dBm(Max) |
| Noise Temperature : | 12°K(Max) |
| Power Supply : | 11-22V/150mA(Max) |
| Waveguide : | WC-229 |
| Switching Voltage : | 11-14.5 V(V)/15.5-22V(H) |
| Image Rejection : | 45dB(Min) |
| Output Power : | +5dBm(at 1 dB compression) |
| Output Connector : | Type "F" Female |
| Input Connector : | Circular W G with Horn Ring |

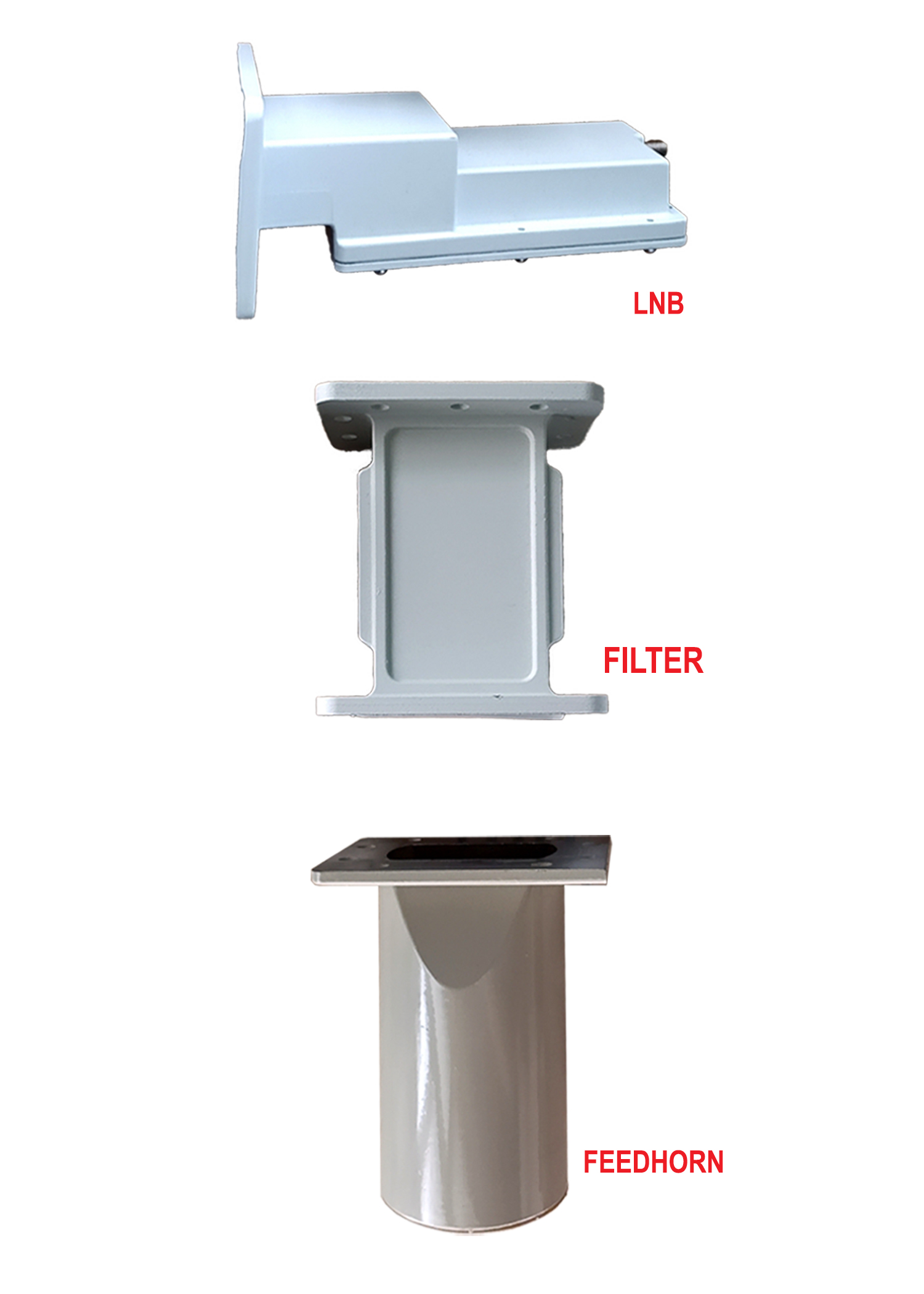

| Input Frequency : | 3.7-4.2GHz |
| L.O Frequency : | 5.150GHz |
| Frequency Stability : | ± 500KHz |
| Conversion Gain : | 62dB |
| Noise Temperature : | 20°K(Max) |
| DC Input : | +15 to +24V |
