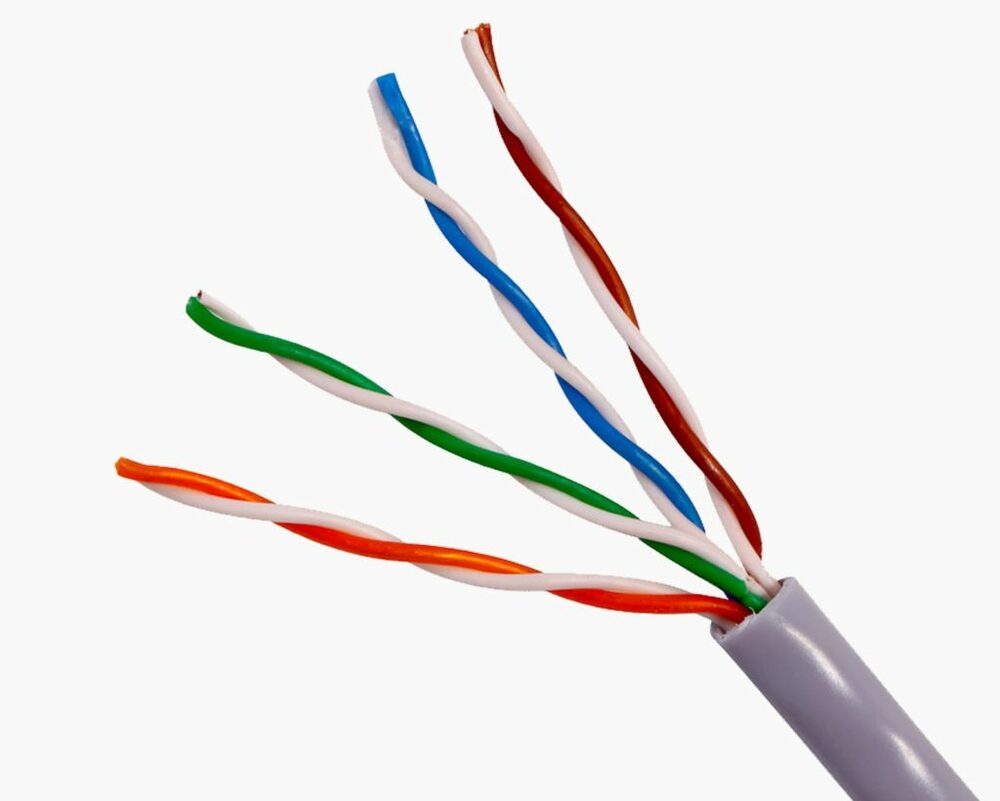

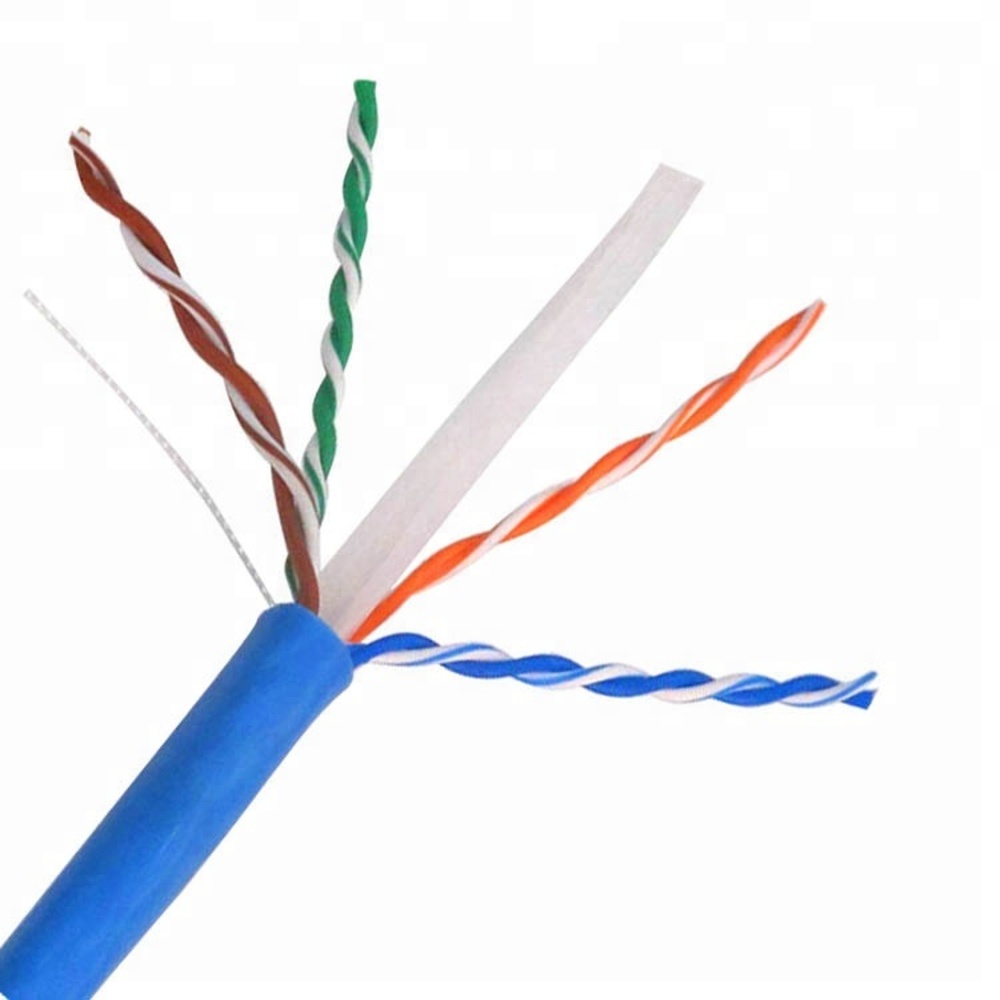

UTP NETWORK CABLES
Networking hardware used to connect one network device to other network devices.
| Conductor : | 24AWG, Solid/Stranded bare Copper |
| Insulation : | Polyolefin |

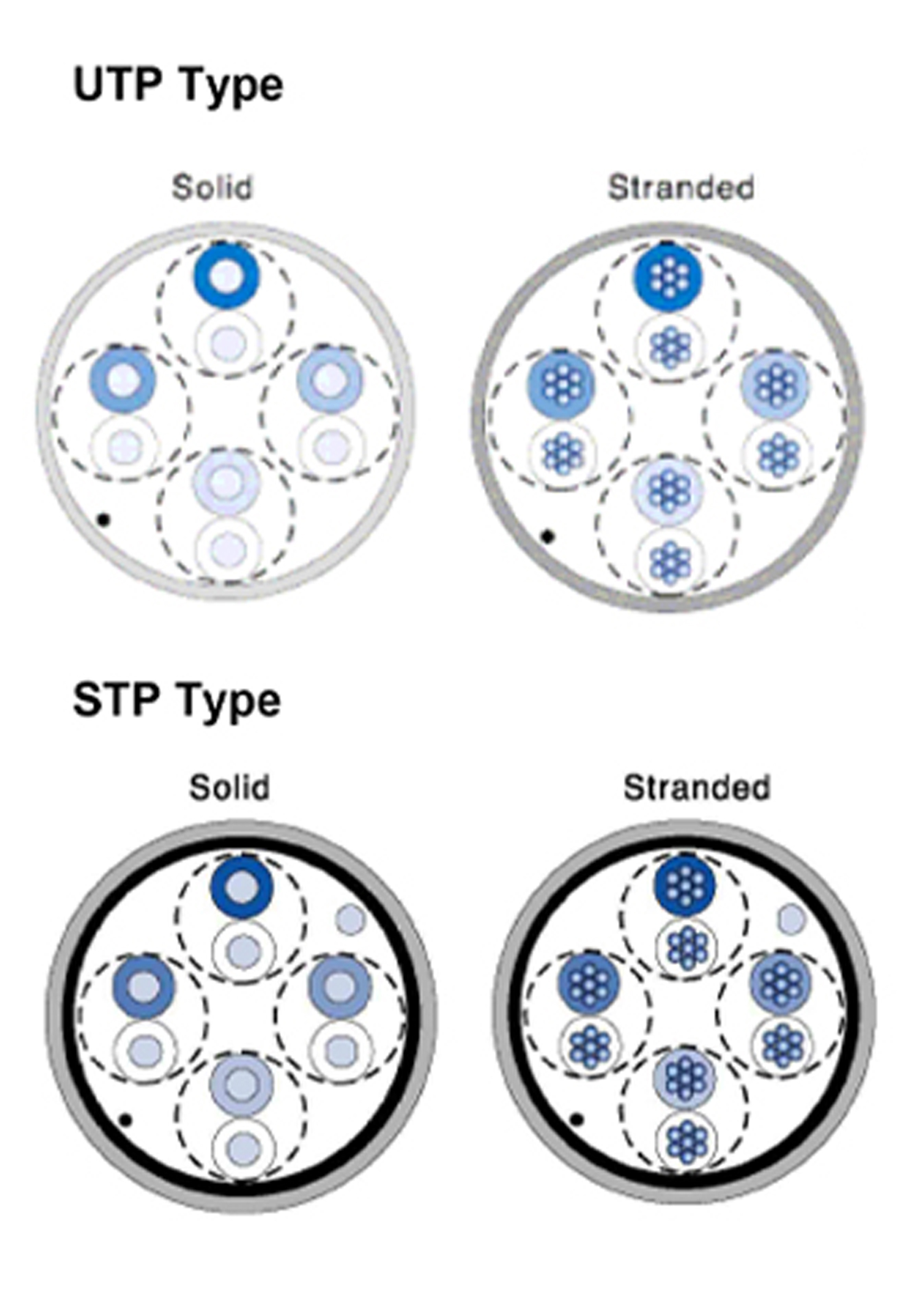

| Shield : | Mylar Tape, Aluminum-mylar tape, drain wire (Only for STP type) |
| Jacket : | PVC |
| Standard : | UL444 Type CM, CMR CAS-FT4, FT6 |
| Application : | for Audio and Video Data Transfer for Local Area Network |
| Color Code: | Pair 1: Blue, White/Blue Pair 2: Orange, White/Orange Pair 3: Green, White/Green Pair 4: Brown, White/Brown |
| Conductor : | 24AWG, Solid/Stranded bare Copper |
| Insulation : | Polyolefin |
| Shield : | Mylar Tape, Aluminum-mylar tape, drain wire (Only for STP type) |
| Jacket : | PVC |
| Standard : | ISO/IEC-11801 UL444 Type CM, CMR CAS-FT4, FT6 |
| Application : | for Audio and Video Data Transfer for Local Area Network |
| Color Code: | Pair 1: Blue, White/Blue Pair 2: Orange, White/Orange Pair 3: Green, White/Green Pair 4: Brown, White/Brown |
| Conductor : | 24AWG, Solid/Stranded bare Copper |
| Insulation : | Polyolefin |
| Shield : | Mylar Tape, Aluminum-mylar tape, drain wire (Only for STP type) |
| Jacket : | PVC |
| Standard : | ISO/IEC-11801 UL444 Type CM, CMR CAS-FT4, FT6 |
| Application : | for Audio and Video Data Transfer for Local Area Network |
| Color Code: | Pair 1: Blue, White/Blue Pair 2: Orange, White/Orange Pair 3: Green, White/Green Pair 4: Brown, White/Brown |
